    Schneider original SM6 circuit breaker cabinet, 12KV ~ 24KV, 630A 1250A, IM 630 - 12 - 20, IM 630 - 24- 20

    $21,000.00
    0 sold
    Qty

    1. Product Overview

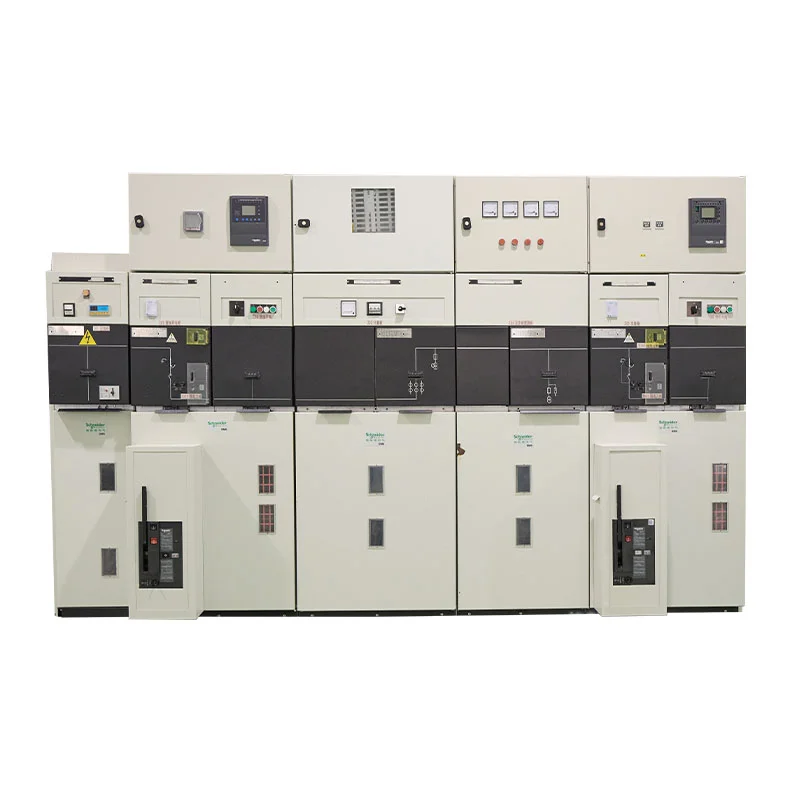

    The Schneider Electric SM6 circuit breaker cabinet is a medium-voltage switchgear designed for high reliability and safety. It is part of the Merlin Gerin brand, known for its leading technology and user-centric design philosophy. The SM6 series is suitable for installation in distribution rooms or box-type substations, with front cable connections and all control elements centralized on the front operation panel, simplifying operation.

    2. Functional Features

    • Modular Design: The SM6 series is a modular, expandable, and metal-sealed switchgear series.
    • Switching Devices: It includes load switches, Fluarc SF1 or SFset circuit breakers, Rollarc 400 or 400D contactors, and isolation switches.
    • Monitoring and Protection: Equipped with Sepam digital multifunctional protection series, VIP inverse time protection devices, and RCV420 backup self-throwing devices.
    • Safety Features: The cabinet is designed with safety interlocks and provides protection against electrical hazards.

    3. Technical Specifications

    • Voltage Range: Suitable for systems with a nominal voltage of 12-24kV.
    • Current Ratings: Rated current options include 630A and 1250A, with short-circuit current ratings of 20kA and 25kA .
    • Cabinet Material: Typically constructed with metal for durability and safety.
    • Auxiliary Equipment: Can be equipped with relays, coils, instrument transformers, and other accessories.

    4. Advantages Analysis

    • Reliability: The SM6 series is known for its high reliability and safety, with a design that ensures minimal maintenance and long operational life.
    • Flexibility: The modular design allows for easy expansion and adaptation to different electrical requirements.
    • Safety: Features such as safety interlocks and advanced monitoring systems enhance safety and reduce the risk of accidents.
    • Maintenance: The SM6 series is designed for low maintenance, with a lifespan of up to 30 years, ensuring reliable operation with minimal downtime.

    5. Application Scenarios

    • Public Distribution Networks: Widely used in secondary public distribution fields up to 24kV.
    • Industrial and Civil Substations: Suitable for industrial and civil substations, providing reliable power distribution and control.
    • Box-Type Substations: Ideal for installation in box-type substations, ensuring efficient power management in confined spaces.
