Product Overview

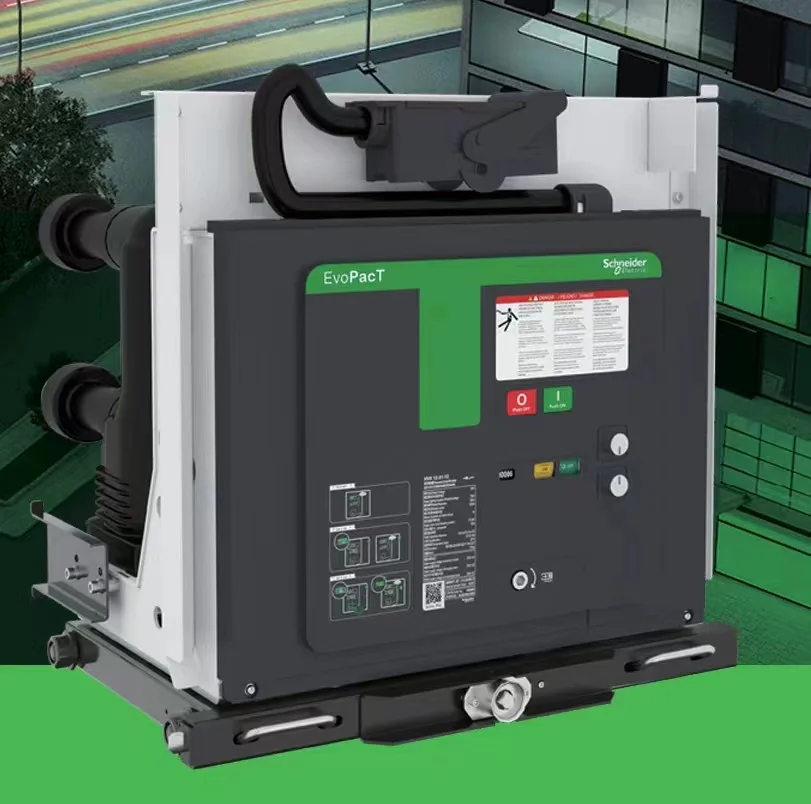

The Schneider Electric EvoPacT HVX series represents a new generation of medium-voltage vacuum circuit breakers. This innovative product line is designed to meet the evolving demands of smart power distribution systems, offering a fusion of advanced technology and digital capabilities. The EvoPacT HVX series is a testament to Schneider Electric's commitment to providing reliable, intelligent, and sustainable solutions in the electrical industry.
-
Functional Features
- Digital Native Design: Incorporating digital native features that enable real-time monitoring, condition-based maintenance, and predictive maintenance for comprehensive operational visibility.
- High-Performance Vacuum Interrupter: Equipped with a high-performance vacuum arc extinguishing chamber and epoxy-encapsulated poles, enhancing electrical life and capacitive breaking capacity.
- Modular Design: The platform is designed with a modular concept, offering flexible and efficient innovation.
- Intelligent Solutions: The circuit breaker is imbued with intelligent monitoring modules that can provide a flexible functional combination and a complete system architecture, reducing on-site commissioning work and improving equipment reliability.
-
Technical Specifications
- Voltage Ratings: Designed for medium-voltage applications, typically 12 kV and 24 kV.
- Breaking Capacities: Capable of withstanding high short-circuit currents, with a full capacity breaking number up to 100 times for 40kA and below.
- Mechanical Life: The mechanical life can reach up to 50,000 operations.
- Environmental Adaptability: The EvoPacT HVX is designed to operate in a wide range of temperatures and can adapt to challenging environmental conditions such as high altitudes and low temperatures.
-
Advantages Analysis
- Reduced Maintenance Costs: The overall maintenance cost can be reduced by more than 50%, significantly improving operational efficiency.
- Enhanced Safety: The use of vacuum technology eliminates the risk of toxic gas release, contributing to a safer working environment.
- Green and Low Carbon: Aligns with environmental sustainability goals by avoiding the use of harmful substances and adhering to EU RoHS directives and REACh regulations.
- High Reliability: The product's design ensures high reliability and performance, even in extreme operating conditions.
-
Application Scenarios
- Power Distribution Networks: Suitable for medium-voltage power distribution systems where reliability and safety are paramount.
- Data Centers: Can provide the necessary reliability and uptime for critical data center operations.
- Airports: Capable of meeting the high reliability and safety standards required for airport operations.
- Industrial Applications: Ideal for heavy industrial applications where high operational parameters and environmental resilience are needed, such as petrochemical and metallurgical industries.
The Schneider Electric EvoPacT HVX series vacuum circuit breaker is a cutting-edge solution that combines the legacy of HVX's reliability with the innovation of digital native and modular design, setting a new standard for medium-voltage electrical systems.
