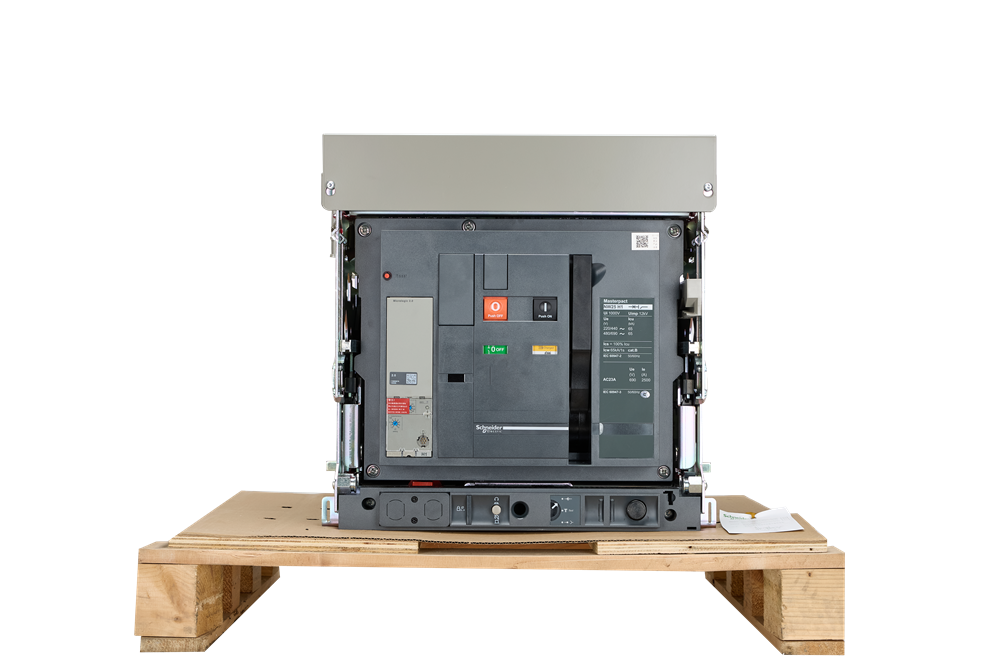

    Schneider MT08-40 H1 H2 Drawer type Air Circuit Breaker, MIC 2.0 LI Basic Protection

    $3,029.00
    0 sold
    Breaking Capacity
    Rated Current
    Number of poles
    Qty

    1. Product Overview

      The Schneider Electric MT08-40 H1 H2 draw-out type air circuit breaker is a part of the Masterpact MT series, designed for medium voltage applications. It is a high-performance, reliable, and safe switching device suitable for a variety of industrial and utility environments 2.

    2. Functional Features

      • The MT08-40 H1 H2 is equipped with a draw-out mechanism that facilitates easy installation, maintenance, and replacement.
      • It offers a range of accessories for enhanced functionality, including communication options, electric actuators, and various coils for different control requirements.
      • The device supports integration with advanced control systems for remote operation and monitoring 2.

    3. Technical Specifications

      • The Masterpact MT series covers a range of current ratings from 630A to 6300A, with the H1 and H2 types specifically designed for higher current ratings starting from 4000A up to 6300A 2.
      • It features a compact design, which is consistent across various current ratings, ensuring space efficiency in installations 2.
      • The circuit breaker is compatible with Micrologic control units, offering a variety of protection and measurement functions 2.

    4. Advantages Analysis

      • The draw-out type design allows for safe and convenient operation, reducing downtime and maintenance time.
      • The use of air as the interrupting medium is cost-effective and environmentally friendly compared to other technologies.
      • The Masterpact MT series is known for its high short-circuit breaking capacity and short-time withstand current, ensuring reliable operation under fault conditions 2.
      • The circuit breaker's compatibility with a wide range of control units and accessories provides flexibility and adaptability to various system requirements 2.

    5. Application Scenarios

      • The MT08-40 H1 H2 is ideal for use in medium voltage power distribution systems, industrial plants, and utility substations where high reliability and safety are paramount.
      • It can be applied in motor control centers, transformer protection schemes, and various other applications requiring high current handling capabilities 2.

    The Schneider Electric MT08-40 H1 H2 draw-out type air circuit breaker is a robust and versatile solution for medium voltage switching applications, offering a combination of safety, reliability, and flexibility to meet the demands of modern industrial electrical systems 2.
