Product Overview

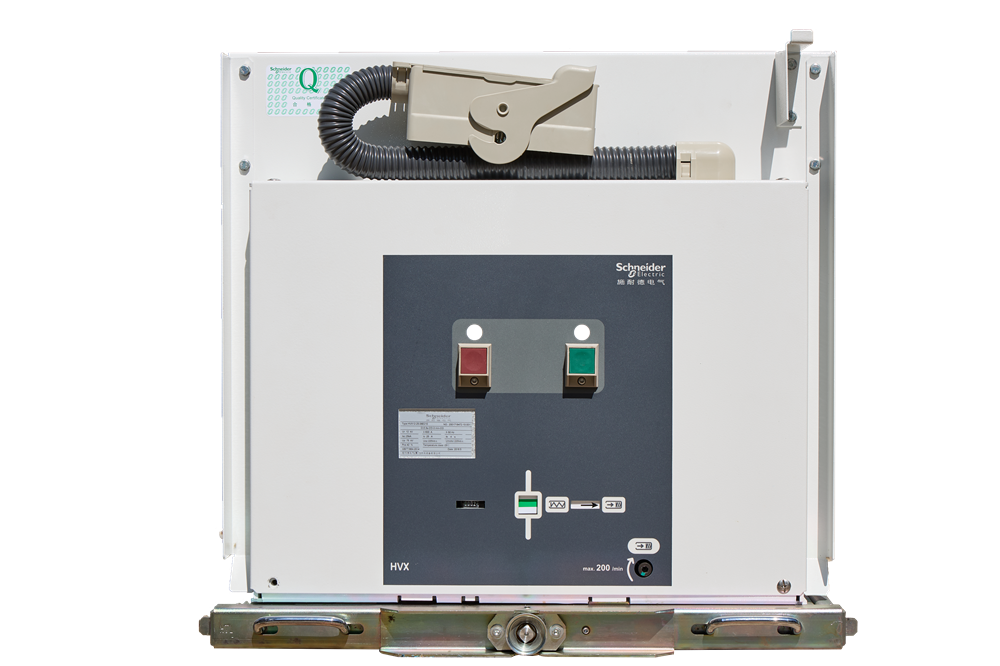

The Schneider Electric HVX12 series is a range of vacuum circuit breakers designed for medium-voltage applications. These devices are engineered to provide high reliability, safety, and efficiency in electrical power distribution and control systems.
-
Functional Features
- Vacuum Interruption Technology: Utilizes vacuum as the arc-quenching medium, which offers superior arc extinguishing properties and a longer service life compared to air or oil.
- High Interrupting Capacity: Capable of handling high short-circuit currents, ensuring protection against electrical faults.
- Rapid Operation: Features a quick make and break operation, reducing the time taken to isolate faults in the system.
- Low Maintenance: The vacuum technology minimizes the need for regular maintenance, reducing operational costs.
-
Technical Specifications
- Voltage Ratings: Typically available in 12 kV and 24 kV variants.
- Breaking Capacities: Ranges from 630A to 4000A, depending on the model.
- Operating Mechanisms: Include spring-stored mechanisms with undervoltage release for reliable operation.
- Contact Materials: High-quality materials like copper or copper-chrome ensure long-term durability and conductivity.
- Environmental Ratings: Designed to operate in a wide range of temperatures and environmental conditions.
-
Advantages Analysis
- Enhanced Safety: The vacuum design eliminates the risk of toxic gas release, making it safer for personnel and the environment.
- Improved Reliability: The vacuum technology provides consistent performance and a longer operational life, reducing the frequency of replacements.
- Energy Efficiency: Minimizes energy losses during switching operations, contributing to overall system efficiency.
- Sustainability: Aligns with environmental goals by avoiding the use of harmful substances like SF6.
- Versatility: Suitable for a wide range of applications, from power distribution to industrial automation.
-
Application Scenarios
- Power Distribution: Ideal for medium-voltage power distribution systems in utilities and industrial complexes.
- Motor Control: Effective in motor control centers for precise and reliable switching of large motors.
- Renewable Energy: Can be integrated into systems for wind, solar, or hydroelectric power, ensuring efficient energy management.
- Infrastructure: Suitable for critical infrastructure such as transportation systems, where high reliability and safety are essential.
- Commercial and Industrial Buildings: Provides dependable power control in large commercial and industrial facilities.
The Schneider Electric HVX12 series vacuum circuit breakers are a testament to the company's commitment to providing advanced, safe, and sustainable solutions in the field of industrial electrical products.
