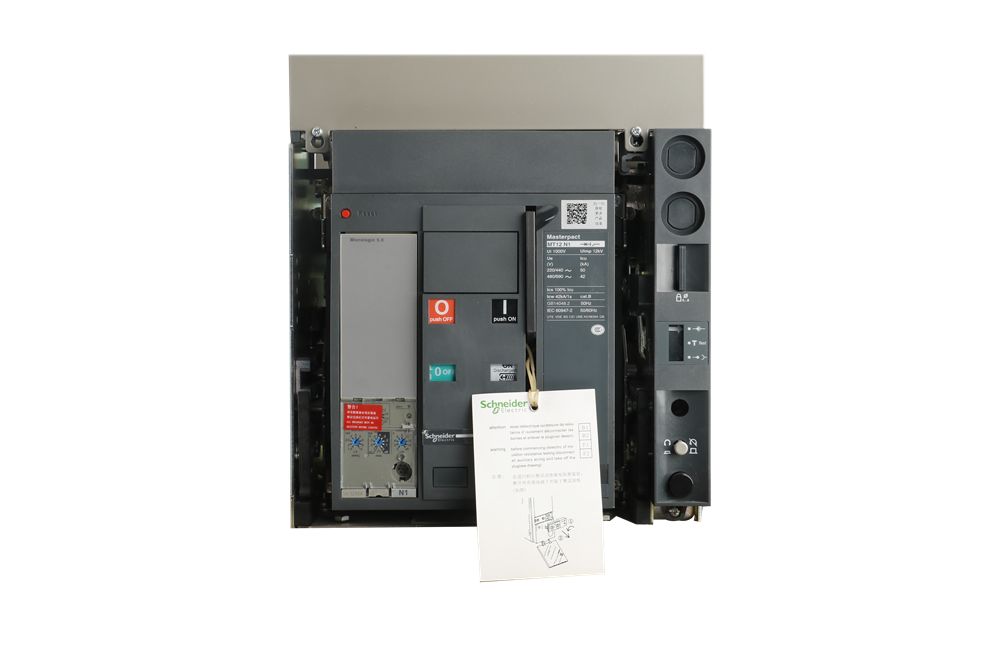

The Schneider Electric Masterpact MT06-16 N1 Drawer type air circuit breaker is a component of the Masterpact MT series, designed for medium voltage applications. Here's a professional overview of the MT06-16 N1 air circuit breaker:
-
Product Overview The MT06-16 N1 is a medium voltage air circuit breaker that offers high performance and reliability. It is part of the Masterpact MT series, which is known for its robustness and versatility in medium voltage electrical systems.
-
Functional Features
- The N1 model is designed for current ratings from 630A to 1600A with a breaking capacity of up to 50kA.
- It is available in both draw-out and fixed types, providing flexibility for various installation requirements.
- The circuit breaker can be used in three or four pole configurations to suit different system needs.
-
Technical Specifications
- The MT06-16 N1 is part of a range that includes different models for various current and breaking capacities, ensuring there is an option suitable for most applications.
- It is equipped with Micrologic control units, which offer comprehensive protection and facilitate user maintenance and monitoring.
-
Advantages Analysis
- The Masterpact MT06-16 N1 provides intelligent control for future-proofing electrical systems.
- It benefits from a modular design, allowing for easy assembly and adaptation to changing requirements on-site.
- The circuit breaker is backed by a warranty period of 18 months, demonstrating Schneider Electric's confidence in its quality and reliability.
-
Application Scenarios
- The MT06-16 N1 is suitable for a wide range of applications across various markets including industrial, energy and infrastructure, commercial and public services, residential, and data centers.
- It is particularly adept at protecting and controlling distribution lines and equipment in low voltage distribution fields, making it an excellent choice for standard applications where it is necessary to interrupt lower levels of short-circuit currents.
The Schneider Electric Masterpact MT06-16 N1 Drawer type air circuit breaker is a testament to the company's commitment to providing high-quality, reliable, and intelligent electrical solutions for medium voltage applications.
